Measure Your Space

Simple Steps Below

Need Help With Design?

Kitchen design sketch concept

Design service available by appointment only

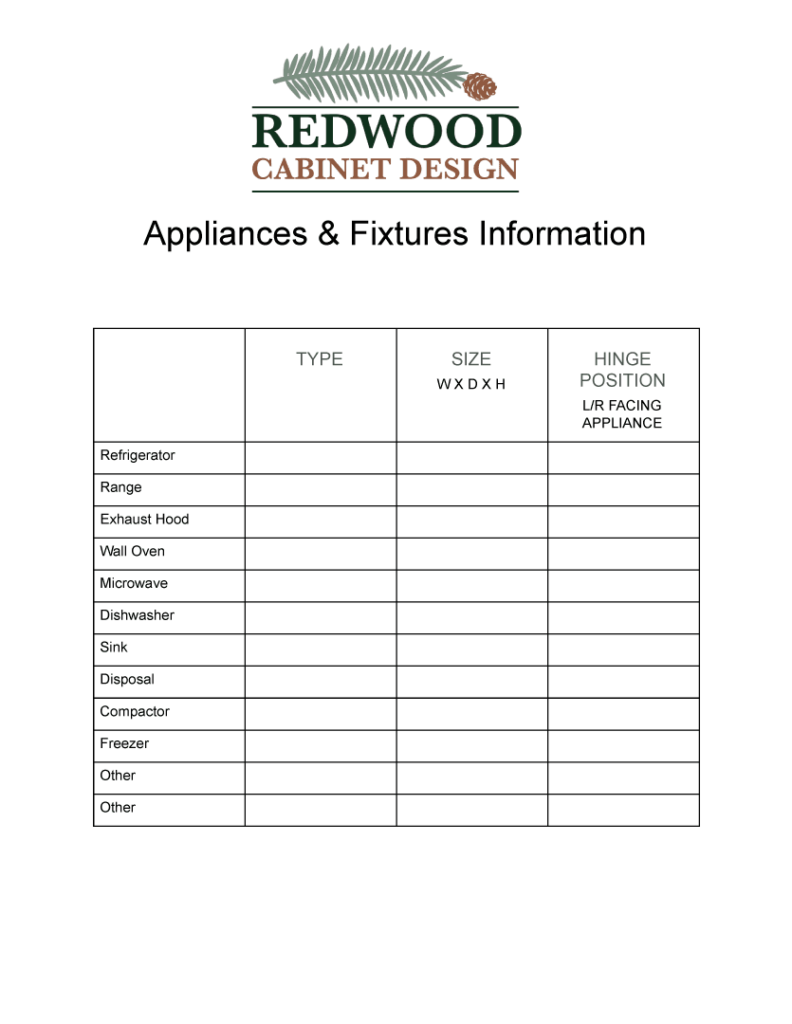

Appliances and Fixture Information:

1. Show the desired location of the appliances and fixtures on the the drawing.

2. Make a list and measure the dimensions of the appliances and fixtures.

Our Guide

Horizontal Measurements:

  1. Measure from wall to wall at 36 “in Height.
  2. Measure from corner to Window or Door opening.
  3. Measure Across Opening from trim edge to trim edge.
  4. Measure from the edge of trim to the far wall.
  5. Mark the exact location of water, drain, gas-lines, and electrical outlets.
  6. Compare the sum of the steps, two, three, and four.

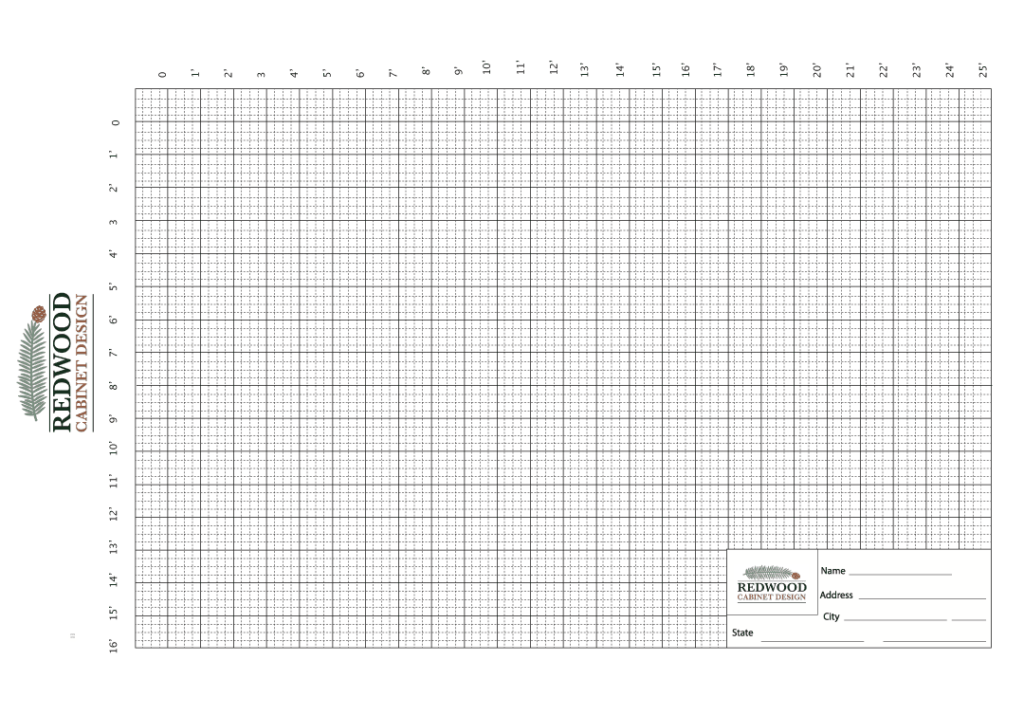

Floor Plan Diagram
Vertical Measuring Sketch Outline

Vertical Measurements:

  1. Measure from the floor to the window sill.
  2. Measure from window sill to the top of the window.
  3. Measure from top of the window to the ceiling.
  4. Measure from the floor to the ceiling.
  5. Compare the sum of the steps, one, two, and three.
